2626920-000-440

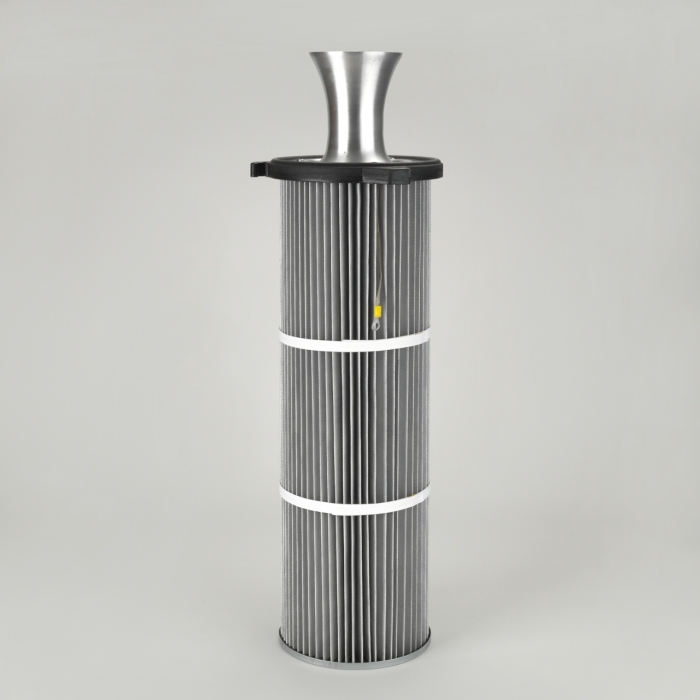

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Ultra-Web Spunbond Anti-Static, 145 mm outer diameter x 1215 mm long including top gasket; Special features: With venturi, Dirty Air Plenum installation, earthed for TAMA, Coral and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	1215
Media	Ultra-Web Spunbond Antistatic
Area (m²)	3.77
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Max. Temp (°C)	60
Volume (m³)	0.06877
Weight (kg)	3.09
