2625576

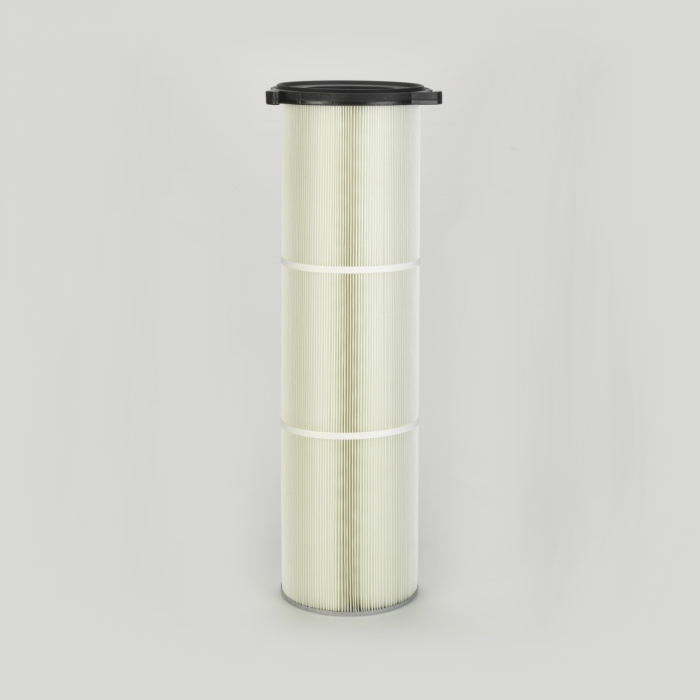

Cartridge Filter with open top end cap with 3 hooks, 397 mm pitch diameter and closed bottom end cap in Polyester Spunbond, 325 mm outer diameter x 1218 mm long including top gasket; Special feature: Dirty Air Plenum and Clean Air Plenum installation for Series 325 and other brands of cartridge collectors

Diameter (mm)	325
Inner Diameter (mm)	213
Length (mm)	1218
Media	Polyester Class L
Area (m²)	15
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	No
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Top End Cap Polyurethane and Bottom End Cap Zinc Plated Steel
Gasket Position	Above and Below Top End Cap
Max. Temp (°C)	60
Volume (m³)	0.224028
Weight (kg)	11.52
