2627191-000-440

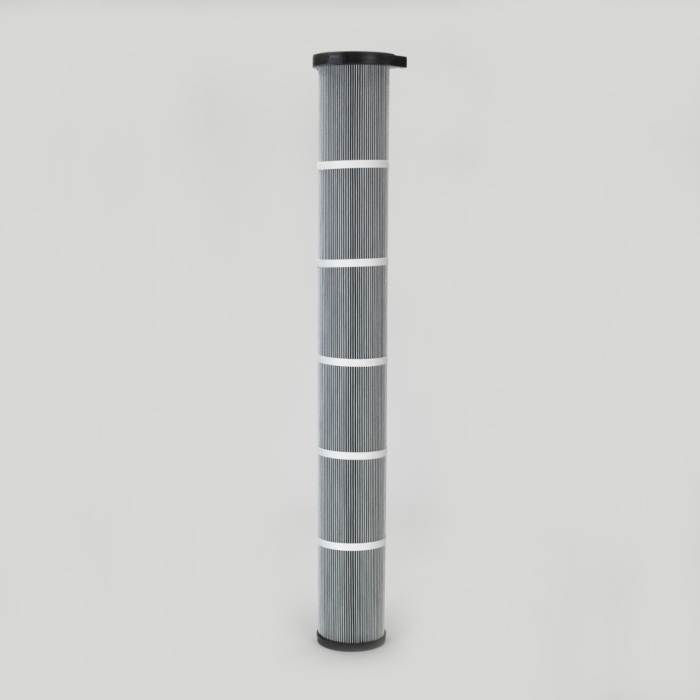

Cartridge Filter with open end cap with 3 hooks and pitch diameter 180 mm in Ultra-Web Spunbond Anti-Static, 145 mm outer diameter x 1215 mm long including top gasket; Special features: Dirty Air Plenum and Clean Air Plenum installation for Tama, Coral and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	1215
Media	Ultra-Web Spunbond Antistatic
Media Weight (g/m²)	260
Area (m²)	5.4
Unit Family	Quick Fix 3
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	22
Number of Pleats	54
Max. Temp (°C)	60
Volume (m³)	0.06506
Weight (kg)	3.68
