2627328-000-440

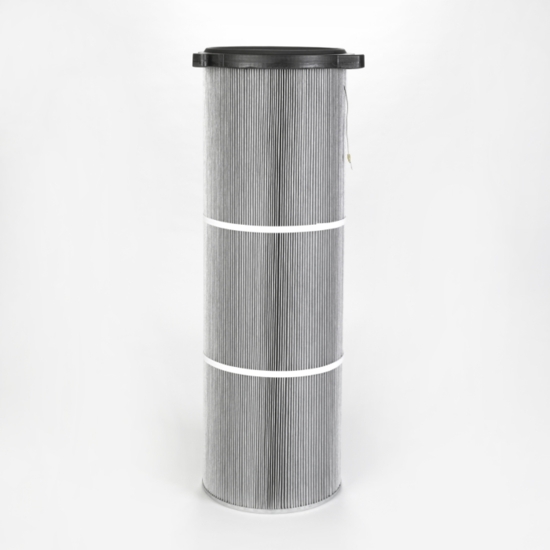

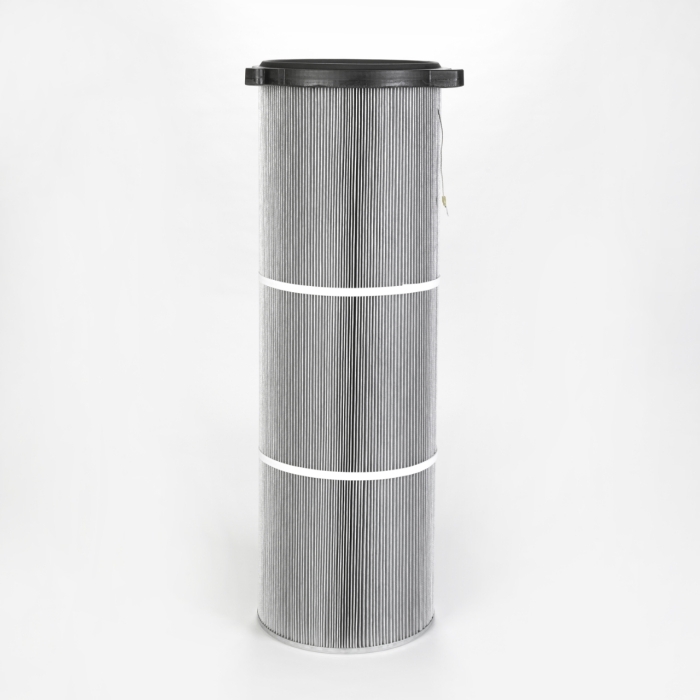

Cartridge Filter with open top end cap with 3 hooks, 207 mm pitch diameter and closed bottom end cap in Polyester Anti-Static (Spunbond Anti-Static), 156 mm outer diameter x 1000 mm long; Special features: Earthed and Dirty Air Plenum and Clean Air Plenum installation for Series 156 and other brands of cartridge collectors

Diameter (mm)	156
Inner Diameter (mm)	84-85
Length (mm)	1000
Media	Polyester Anti-Static
Media Weight (g/m²)	260
Area (m²)	3.7
Unit Family	TD / ECB / DFP / PT1001
Pitch Diameter (mm)	207
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Galvanized Steel
Gasket Position	Above and Below Top End Cap
Pleath Height (mm)	51
Number of Pleats	153
Max. Temp (°C)	93
