2626545

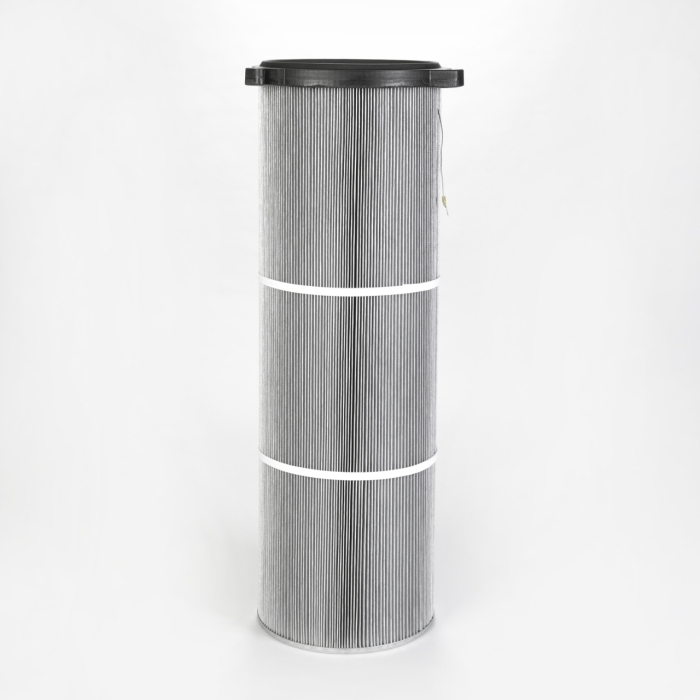

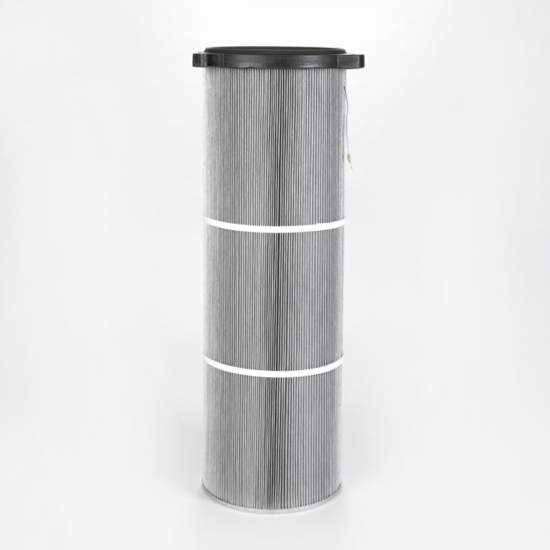

Cartridge Filter with open top end cap with 3 hooks, 180 mm pitch diameter and closed bottom end cap in Polyester Spunbond Anti-Static, 145 mm outer diameterx 715 mm long including top gasket; Special features: Dirty Air Plenum installation and earthed for Coral and other brands of cartridge collectors

Diameter (mm)	145
Inner Diameter (mm)	94
Length (mm)	715
Media	Polyester Anti-Static
Media Weight (g/m²)	270
Area (m²)	2.62
Unit Family	Quick Fix 3
Pitch Diameter (mm)	180
Top End Cap Design	Open with 3 Hooks
Bottom End Cap Design	Closed
Earthed	Yes
Flame Retardant	No
Outer Liner	No
End Cap/Liner Material	Polyurethane
Gasket Position	Above Top End Cap
Pleath Height (mm)	25
Number of Pleats	50
Max. Temp (°C)	60
Volume (m³)	0.04549
Weight (kg)	2.44
